FortiGate catalog
Five current FortiGates, from the 30G for a small branch to the 901G for a data-center HA pair. Each page lists every part number we would put on a quote with Fortinet’s list price, the datasheet specs with the version cited, and what we check before ordering.
Updated 2026-10-09 · prices as of 2026-09-07
Fortinet list price (as of 2026-09-07), from the Fortinet Americas 2026 MidQ3 Price List. Your quote confirms current pricing, tax and shipping.

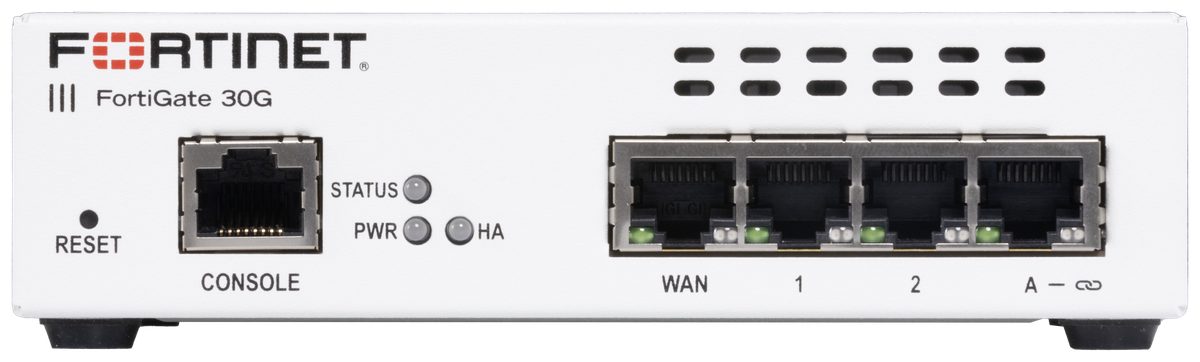

For a branch, shop or small clinic of up to about 15 people on a circuit up to about 300 Mbps, often as an SD-WAN spoke behind a larger hub.
Desktop, four gigabit ports (1 WAN, 2 LAN, 1 FortiLink). The entry G-series for a small branch or SD-WAN spoke. The 31G adds 30 GB of storage.

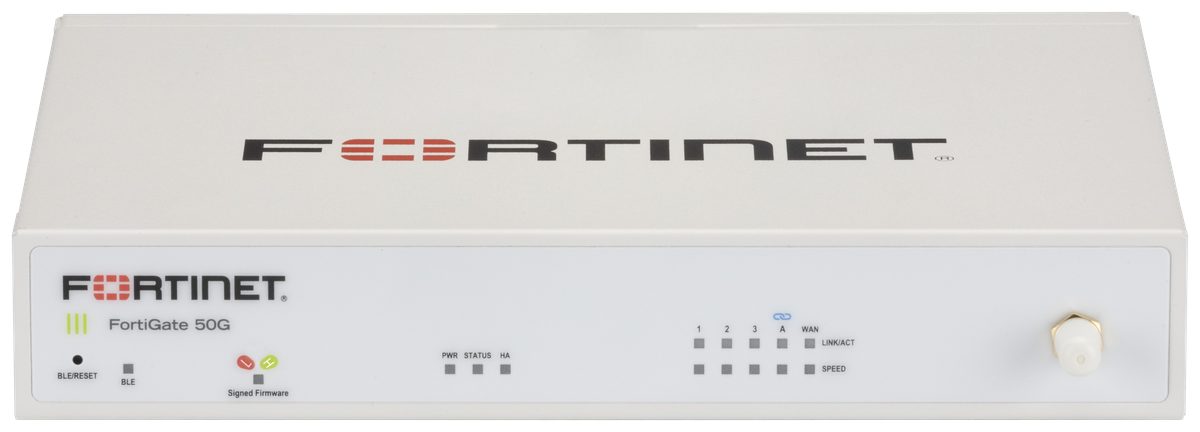

For 10 to 25 people on a 300 Mbps to 1 Gbps circuit, with a managed switch behind the firewall handling the LAN.
Desktop, fanless, five gigabit ports. Variants add an SFP port, PoE+, a 5G modem or DSL; the 51G adds a 64 GB SSD.

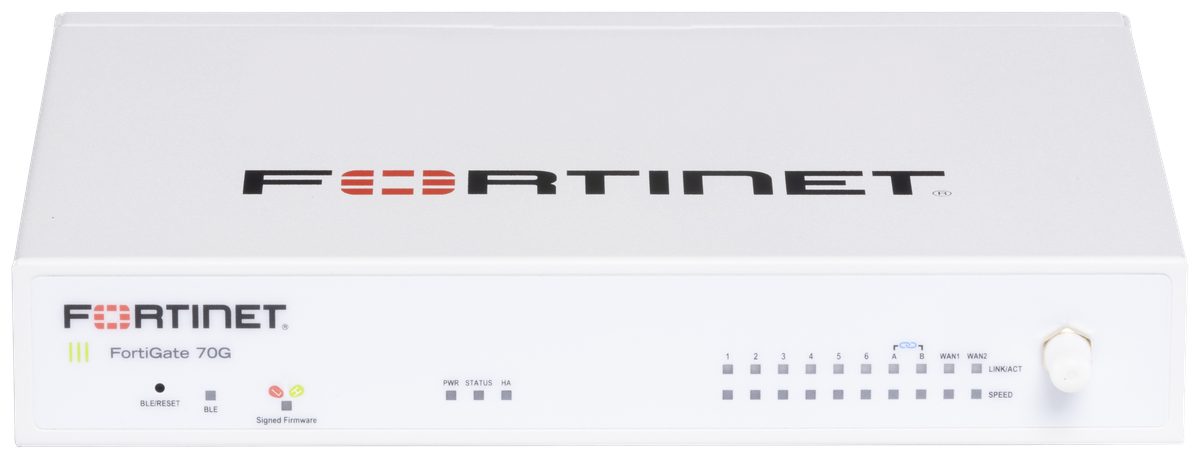

For an office of roughly 20 to 50 people on a gigabit or slower circuit, especially where the firewall is also the only switch or has to power a few access points or phones.
Desktop, fanless, ten gigabit copper ports. A PoE variant powers four devices. The usual pick for a single office up to about 50 people.

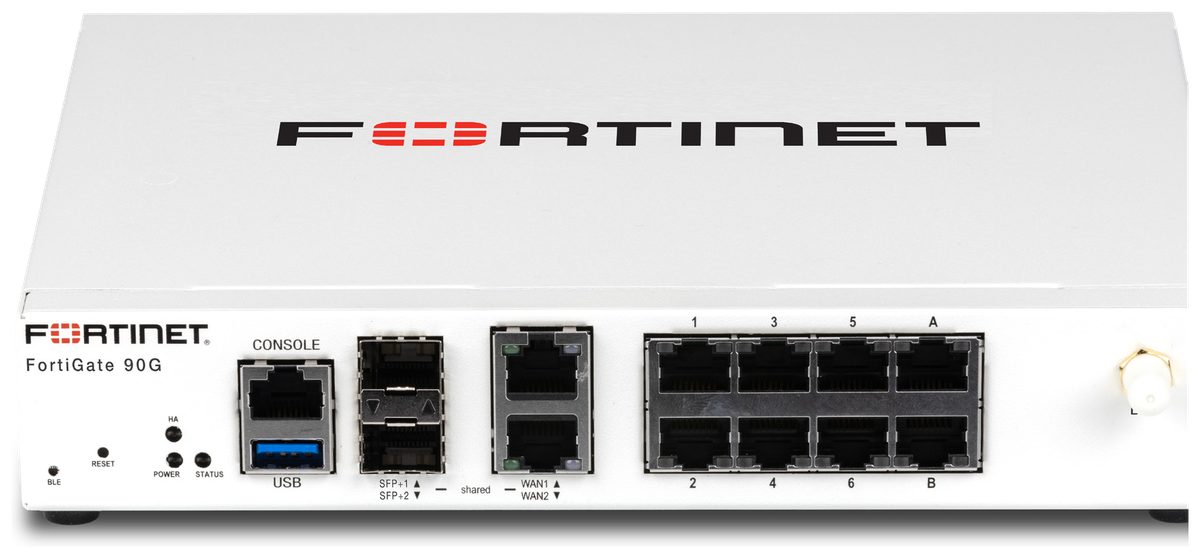

For 40 to 80 people, a circuit above 1 Gbps or two circuits for SD-WAN, or a core switch with 10G uplinks that a gigabit firewall would choke.
Desktop, two 10G shared-media WAN pairs (copper or SFP+), eight gigabit ports. The smallest G-series that keeps up with multi-gig uplinks.

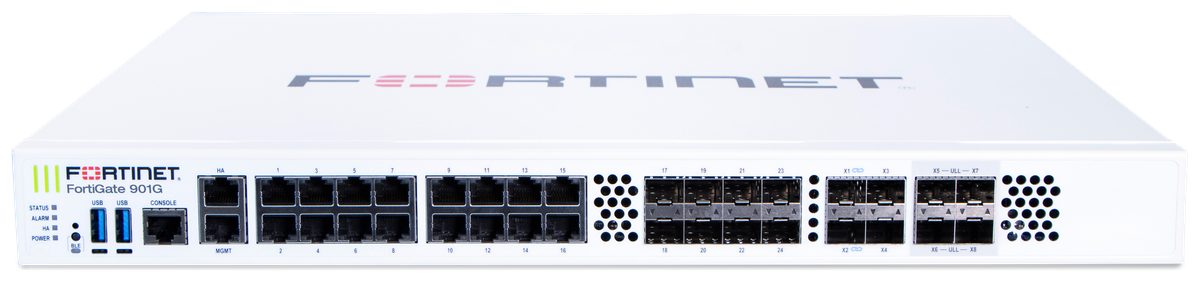

For a data-center edge, campus core or SD-WAN hub: 10G and 25G uplinks, an HA pair, and tens of gigabits of inspected traffic in one rack unit.
1RU, dual hot-swap power, 4x 25G and 4x 10G cages, dedicated HA and management ports, 2x 480 GB SSD. Built for an HA pair at a hub or data center.
The circuit decides more than the headcount: we want threat-protection throughput at or above about 70 percent of the internet speed with all profiles on. The FortiGate sizing guide has the full rules and the 30G to 90G comparison.
Datasheet numbers for all five side by side, with the appliance list price. Size on threat protection and SSL inspection, not the firewall figure.
| Datasheet figure | 30G | 50G | 70G | 90G | 901G |
|---|---|---|---|---|---|
| Threat protection | 500 Mbps | 1.1 Gbps | 1.3 Gbps | 2.2 Gbps | 30 Gbps |
| NGFW | 570 Mbps | 1.25 Gbps | 1.5 Gbps | 2.5 Gbps | 31 Gbps |
| IPS | 800 Mbps | 2.25 Gbps | 2.5 Gbps | 4.5 Gbps | 42 Gbps |
| SSL inspection (IPS, avg. HTTPS) | 400 Mbps | 1.3 Gbps | 1.4 Gbps | 2.6 Gbps | 16.7 Gbps |
| IPsec VPN (512 byte) | 3.5 Gbps | 4.5 Gbps | 7.1 Gbps | 25 Gbps | 55 Gbps |
| Firewall (1518 byte UDP) | 4 Gbps | 5 Gbps | 10 Gbps | 28 Gbps | 164 Gbps |
| Concurrent sessions | 600,000 | 720,000 | 1.4 M | 3 M | 28 M |
| New sessions per second | 30,000 | 85,000 | 100,000 | 124,000 | 720,000 |
| Ports | 4x GE RJ45 (1 WAN, 2 LAN, 1 FortiLink) | 5x GE RJ45 (1 WAN, 3 LAN, 1 FortiLink) | 10x GE RJ45 (2 WAN, 6 LAN, 2 FortiLink); 70G-POE: 4 PoE/+ | 8x GE RJ45, 2x 10GE RJ45/SFP+ shared-media WAN | 16x GE RJ45, 8x GE SFP, 4x 10GE SFP+, 4x 25GE SFP28, HA, MGMT |
| Storage | None (31G: 30 GB) | None (51G: 64 GB SSD) | None (71G: 64 GB SSD) | None (91G: 120 GB SSD) | 2x 480 GB SSD |
| VDOMs (default / max) | Not supported | 5 / 5 | 10 / 10 | 10 / 10 | 10 / 50 |
| SSL-VPN | Not supported | Not supported | Not supported | Only FortiOS 7.0.12–7.0.15 | No tunnel mode on FortiOS 7.6.3+ |
| Form factor | Desktop | Desktop, fanless | Desktop, fanless | Desktop | 1RU, dual hot-swap PSU |
| Appliance list price | $697 FG-30G | $1,093 FG-50G | $1,562 FG-70G | $3,638 FG-90G | $49,411 FG-901G |
Sources: Fortinet FortiGate / FortiWiFi 30G Series datasheet (FGFWF-30G-DAT-R07-20260414); Fortinet FortiGate / FortiWiFi 50G Series datasheet (FGFWF-50G-DAT-R18-20260929); Fortinet FortiGate / FortiWiFi 70G Series datasheet (FGFWF-70G-DAT-R10-20260929); Fortinet FortiGate 90G Series datasheet (FG-90G-DAT-R18-20260929); Fortinet FortiGate 900G Series datasheet (FG-900G-DAT-R23-20260929). Enterprise traffic mix, logging enabled, values “up to”. Appliance list price from the Fortinet Americas 2026 MidQ3 Price List, effective 2026-09-07; each model page lists every bundle and renewal part number.
We quote every current FortiGate, including models between the 90G and the 901G such as the 120G, plus FortiSwitch, FortiAP, FortiManager, FortiAnalyzer and renewals. Send the part number, or the circuit speed, user count and what the firewall has to do, and we will pick the model. See Fortinet reseller for everything we sell.
Every line on the quote is an exact Fortinet part number and term, sized to your circuit and the services you run. Your written quote confirms current pricing, tax and shipping.
Payment clears before the distributor order. The unit ships from distribution to your site; freight is billed at actual cost.
Hardware and subscriptions go on your FortiCare account, not ours. Serials and contract dates are on the invoice.
We watch the expiry for every serial we sell and contact you at 120, 90, 60 and 30 days out.
Full terms, special-order rules and what to send for a quote: how buying from us works.
We buy through Fortinet’s authorized U.S. distribution. Every unit is new, in-channel and registered to your own FortiCare account. Our Fortinet partner ID goes on every quote so you can verify it.
Fortinet, FortiGate, FortiWiFi, FortiCare, FortiManager, FortiAnalyzer, FortiOS, FortiSwitch, FortiAP and FortiLink are trademarks or registered trademarks of Fortinet, Inc. Ambio Edge Networks is an independent company and a Fortinet Engage partner; Fortinet does not endorse or sponsor this page.
Automated 24/7 monitoring and alerting to your Slack, Teams or email and to us, configuration backups, a monthly report, and next-business-day response from a senior engineer (Mon–Fri, 8–6 Pacific). Up to 10 managed devices.
No change hours are included. Standard remote changes you ask for bill at $225/hr, 30-minute minimum; larger engineering work is quoted first. Hardware, licensing and migration are quoted separately.
One-time monitoring launch: $3,500 for the first site (dashboard, alert routing, baseline, runbook). Faster response and included change hours are on the Secure and Compliance plans.
Start with a fixed-fee network risk assessment, or read how managed network monitoring works.
Request a Quote
For a renewal or replacement, send the serial number and expiry. For a new install, send the circuit speed, user count, switches and access points, and the ship-to address. You get a written quote with exact Fortinet part numbers and terms.
A senior engineer reads your request and replies within 1 business day.
If anything is missing for an exact quote, we ask before guessing.
You get a written quote with part numbers, terms, shipping and tax lines.
Nothing is ordered until you accept and payment clears.
