Fortinet list prices · datasheet specs
Part numbers and list prices ↓
For a campus edge or branch hub that deep-inspects most of its traffic: the 400G's ports and chassis with twice its threat-protection throughput.
Buy it by part number. We can move you onto it for a fixed fee quoted on the call; see firewall migration.
Updated 2026-10-21 · prices as of 2026-09-07
Fortinet datasheet figures, enterprise traffic mix. Threat protection is the throughput with IPS, application control and malware protection all on. Size on that figure and on SSL inspection, not on the raw firewall number. Source: Fortinet FortiGate 700G Series datasheet, FG-700G-DAT-R15-20260929 (2026-09-29).
Port map

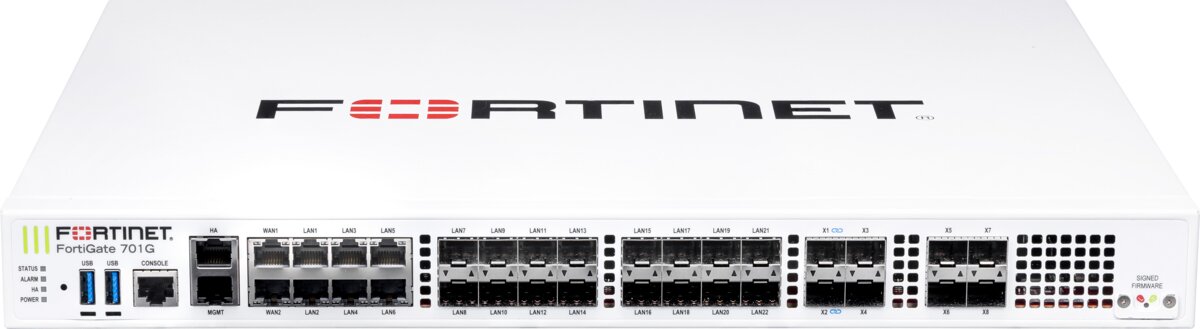

FG-700G / FG-701G (front)
Swipe sideways to see the whole panel.
Every part number we would put on a quote for this model, grouped the way you buy: the box alone, the box with a security bundle, or a renewal for a box you already own. Terms are 1, 3 or 5 years.
Fortinet list price (as of 2026-09-07), from the Fortinet Americas 2026 MidQ3 Price List. Your quote confirms current pricing, tax and shipping.
The 701G is the 700G plus 2x 480 GB SSD, with its own bundle and renewal part numbers (G7H1G against G7H0G), so a 700G renewal SKU will not apply to a 701G serial. The current price list has no DC version of either model.
FG-700G FortiGate 700GDual internal AC power supplies (1+1), not hot-swappable
| Part number | What it includes | Term | Fortinet list price |
|---|---|---|---|
| Appliance onlyHardware with Fortinet’s standard 1 year hardware and 90 day firmware/ticket coverage. We pair it with FortiCare. | |||
FG-700G | FortiGate 700G appliance only, dual AC PSU, no onboard storage. Includes Fortinet's 1 year hardware coverage and 90 days of firmware and ticket support, no FortiGuard services. | Hardware | $35,066 |
| UTP bundleAppliance + FortiCare Premium (ticket support, next-business-day advance hardware replacement, firmware) + FortiGuard Unified Threat Protection (IPS, antivirus and sandbox, application control, URL/DNS/video filtering, antispam). | |||
FG-700G-BDL-950-12 | Appliance + FortiCare Premium + UTP, 1 year | 1 year | $54,470 |
FG-700G-BDL-950-36 | Appliance + FortiCare Premium + UTP, 3 years | 3 years | $93,278 |
FG-700G-BDL-950-60 | Appliance + FortiCare Premium + UTP, 5 years | 5 years | $132,086 |
| Enterprise Protection bundleAppliance + FortiCare Premium + FortiGuard Enterprise Protection: UTP’s IPS and filtering plus AI-based inline malware prevention, inline CASB database, data loss prevention and attack surface security. | |||
FG-700G-BDL-809-12 | Appliance + FortiCare Premium + Enterprise Protection, 1 year | 1 year | $58,628 |
FG-700G-BDL-809-36 | Appliance + FortiCare Premium + Enterprise Protection, 3 years | 3 years | $105,752 |
FG-700G-BDL-809-60 | Appliance + FortiCare Premium + Enterprise Protection, 5 years | 5 years | $152,876 |
| Renewals for a unit already in serviceTied to the serial number. These SKUs fit a FortiGate 700G only. | |||
FC-10-G7H0G-950-02-12 | UTP + FortiCare Premium renewal, 1 year | 1 year | $19,404 |
FC-10-G7H0G-950-02-36 | UTP + FortiCare Premium renewal, 3 years | 3 years | $58,212 |
FC-10-G7H0G-950-02-60 | UTP + FortiCare Premium renewal, 5 years | 5 years | $97,020 |
FC-10-G7H0G-809-02-12 | Enterprise Protection + FortiCare Premium renewal, 1 year | 1 year | $23,562 |
FC-10-G7H0G-809-02-36 | Enterprise Protection + FortiCare Premium renewal, 3 years | 3 years | $70,686 |
FC-10-G7H0G-809-02-60 | Enterprise Protection + FortiCare Premium renewal, 5 years | 5 years | $117,810 |
FC-10-G7H0G-247-02-12 | FortiCare Premium only (support, NBD replacement, firmware; no FortiGuard), 1 year | 1 year | $5,544 |
FC-10-G7H0G-247-02-36 | FortiCare Premium only (support, NBD replacement, firmware; no FortiGuard), 3 years | 3 years | $16,632 |
FC-10-G7H0G-247-02-60 | FortiCare Premium only (support, NBD replacement, firmware; no FortiGuard), 5 years | 5 years | $27,720 |
| Add-on: FortiAnalyzer CloudPrice list description: “cloud-based central logging & analytics. Include all FortiGate log types, IOC Service, Security Automation Service and FortiGuard Outbreak Detection Service.” Per serial number. | |||
FC-10-G7H0G-585-02-12 | FortiGate 700G FortiAnalyzer Cloud, 1 year | 1 year | $8,316 |
FC-10-G7H0G-585-02-36 | FortiGate 700G FortiAnalyzer Cloud, 3 years | 3 years | $24,948 |
FC-10-G7H0G-585-02-60 | FortiGate 700G FortiAnalyzer Cloud, 5 years | 5 years | $41,580 |
Request a quoteName the part number and quantity in your message.
FG-701G FortiGate 701G (2x 480 GB SSD)Dual internal AC power supplies (1+1), not hot-swappable
Show FG-701G part numbers| Part number | What it includes | Term | Fortinet list price |
|---|---|---|---|
| Appliance onlyHardware with Fortinet’s standard 1 year hardware and 90 day firmware/ticket coverage. We pair it with FortiCare. | |||
FG-701G | FortiGate 701G appliance only, dual AC PSU, 2x 480 GB SSD. Same 1 year hardware and 90 day firmware/ticket coverage, no FortiGuard services. | Hardware | $38,254 |
| UTP bundleAppliance + FortiCare Premium (ticket support, next-business-day advance hardware replacement, firmware) + FortiGuard Unified Threat Protection (IPS, antivirus and sandbox, application control, URL/DNS/video filtering, antispam). | |||
FG-701G-BDL-950-12 | Appliance + FortiCare Premium + UTP, 1 year | 1 year | $59,422 |
FG-701G-BDL-950-36 | Appliance + FortiCare Premium + UTP, 3 years | 3 years | $101,758 |
FG-701G-BDL-950-60 | Appliance + FortiCare Premium + UTP, 5 years | 5 years | $144,094 |
| Enterprise Protection bundleAppliance + FortiCare Premium + FortiGuard Enterprise Protection: UTP’s IPS and filtering plus AI-based inline malware prevention, inline CASB database, data loss prevention and attack surface security. | |||
FG-701G-BDL-809-12 | Appliance + FortiCare Premium + Enterprise Protection, 1 year | 1 year | $63,958 |
FG-701G-BDL-809-36 | Appliance + FortiCare Premium + Enterprise Protection, 3 years | 3 years | $115,366 |
FG-701G-BDL-809-60 | Appliance + FortiCare Premium + Enterprise Protection, 5 years | 5 years | $166,774 |
| Renewals for a unit already in serviceTied to the serial number. These SKUs fit a FortiGate 701G (2x 480 GB SSD) only. | |||
FC-10-G7H1G-950-02-12 | UTP + FortiCare Premium renewal, 1 year | 1 year | $21,168 |
FC-10-G7H1G-950-02-36 | UTP + FortiCare Premium renewal, 3 years | 3 years | $63,504 |
FC-10-G7H1G-950-02-60 | UTP + FortiCare Premium renewal, 5 years | 5 years | $105,840 |
FC-10-G7H1G-809-02-12 | Enterprise Protection + FortiCare Premium renewal, 1 year | 1 year | $25,704 |
FC-10-G7H1G-809-02-36 | Enterprise Protection + FortiCare Premium renewal, 3 years | 3 years | $77,112 |
FC-10-G7H1G-809-02-60 | Enterprise Protection + FortiCare Premium renewal, 5 years | 5 years | $128,520 |
FC-10-G7H1G-247-02-12 | FortiCare Premium only (support, NBD replacement, firmware; no FortiGuard), 1 year | 1 year | $6,048 |
FC-10-G7H1G-247-02-36 | FortiCare Premium only (support, NBD replacement, firmware; no FortiGuard), 3 years | 3 years | $18,144 |
FC-10-G7H1G-247-02-60 | FortiCare Premium only (support, NBD replacement, firmware; no FortiGuard), 5 years | 5 years | $30,240 |
| Add-on: FortiAnalyzer CloudPrice list description: “cloud-based central logging & analytics. Include all FortiGate log types, IOC Service, Security Automation Service and FortiGuard Outbreak Detection Service.” Per serial number. | |||
FC-10-G7H1G-585-02-12 | FortiGate 701G (2x 480 GB SSD) FortiAnalyzer Cloud, 1 year | 1 year | $9,072 |
FC-10-G7H1G-585-02-36 | FortiGate 701G (2x 480 GB SSD) FortiAnalyzer Cloud, 3 years | 3 years | $27,216 |
FC-10-G7H1G-585-02-60 | FortiGate 701G (2x 480 GB SSD) FortiAnalyzer Cloud, 5 years | 5 years | $45,360 |
Request a quoteName the part number and quantity in your message.
| Interfaces | |
|---|---|
| 25GE SFP28 / 10GE SFP+ slots | 4 |
| 10GE SFP+ / GE SFP slots | 4 (FortiLink slots, reconfigurable as regular ports) |
| GE SFP slots | 16 |
| 5/2.5/GE RJ45 ports | 8 (WAN1, WAN2, LAN1–LAN6) |
| HA port | 1x 2.5GE / GE RJ45 |
| Management port | 1x GE RJ45 |
| USB ports (client / server) / console | 2, 1x console |
| Included transceivers | 2x SFP SX |
| Onboard storage | None (700G); 2x 480 GB SSD (701G) |
| Hardware security | TPM, signed-firmware hardware switch, FortiSentry |
| Processors | NP7 and CP10 |
| Performance (enterprise traffic mix) | |
| Threat protection throughput | 26 Gbps |
| NGFW throughput | 29 Gbps |
| IPS throughput | 38 Gbps |
| SSL inspection throughput (IPS, avg. HTTPS) | 14 Gbps |
| SSL inspection connections per second | 13,000 |
| SSL inspection concurrent sessions | 1.6 M |
| Application control throughput (HTTP 64K) | 50 Gbps |
| IPsec VPN throughput (512 byte) | 55 Gbps |
| IPsec tunnels, gateway-to-gateway / client-to-gateway | 2,000 / 50,000 |
| IPv4 firewall throughput (1518 / 512 / 64 byte UDP) | 164 / 163 / 145 Gbps |
| Firewall latency (64 byte UDP) | 3.87 μs |
| Firewall throughput (packets per second) | 217.5 Mpps |
| Concurrent sessions (TCP) | 28 M |
| New sessions per second (TCP) | 700,000 |
| Firewall policies | 30,000 |
| CAPWAP throughput (HTTP 64K) | 133 Gbps |
| Virtual domains (default / max) | 10 / 50 |
| Max FortiSwitches | 128 |
| Max FortiAPs (total / tunnel) | 1,024 / 512 |
| Max FortiTokens | 5,000 |
| HA modes | Active-Active, Active-Passive, Clustering |
| Physical and power | |
| Form factor | 1RU rack mount |
| Dimensions (H x W x L) | 1.75 x 17.0 x 13.5 in (44.45 x 432 x 342 mm) |
| Weight | 7.72 lb (3.5 kg) |
| Power supplies | 2 internal AC supplies, 1+1 redundant, not hot-swappable |
| AC input | 100–240 V AC, 50/60 Hz, 6 A max at 100 V AC |
| Power draw, avg / max (700G) | 230 / 283 W |
| Power draw, avg / max (701G) | 240 / 295 W |
| Heat dissipation (700G / 701G) | 965 / 1,006 BTU/h |
| Airflow / noise | Side and front to back; 59 dBA |
| Operating temperature | 32–113 °F (0–45 °C) |
| Operating altitude | Up to 10,000 ft (3,048 m) |
Source: Fortinet FortiGate 700G Series datasheet, FG-700G-DAT-R15-20260929 (2026-09-29). Fortinet states all performance values as “up to”. IPS, application control, NGFW and threat protection are measured with logging enabled; NGFW with firewall, IPS and application control on; threat protection adds malware protection. IPsec uses AES256-SHA256. SSL inspection uses an average of HTTPS sessions across cipher suites. The datasheet still lists SSL-VPN tunnel-mode figures; those do not apply on FortiOS 7.6.3 and later, so they are left out here.
SSL-VPN status. SSL-VPN tunnel mode was removed from every FortiGate in FortiOS 7.6.3, the 700G included. Browser-based web mode is still available on models that support it; tunnel mode is gone on every model. Full-tunnel remote access is IPsec (IKEv2); ZTNA covers access to individual applications. Fortinet: FortiOS 7.6.3 release notes. Background: FortiGate SSL-VPN migration.
The neighbouring models, compared on the same datasheet figures.
The 400G ($24,696 list) is the same 1RU chassis with the same ports, power supplies and dimensions, at half the threat protection (13 Gbps against 26) and 11.5 Gbps SSL inspection at 9,700 new sessions per second against 14 Gbps and 13,000. It manages 96 FortiSwitches and 512 FortiAPs against 128 and 1,024. If measured inspected traffic sits well inside the 400G's figures, the 700G buys headroom, not ports.
The 901G ($49,411 list; the diskless 900G lists at $41,580 against $35,066 for the 700G) rates 30 Gbps threat protection and 16.7 Gbps SSL inspection at 18,000 new sessions per second against 26, 14 and 13,000. Its ports differ: sixteen GE RJ45 and eight GE SFP in place of the 700G's eight 5G copper and sixteen GE SFP, with ultra-low-latency 25G cages. It also uses hot-swappable supplies, comes in a DC version, and manages up to 196 FortiSwitches on FortiOS 7.6.1 and later (96 on earlier releases) and 2,048 FortiAPs.
| Datasheet figure | 400G | 700G | 901G |
|---|---|---|---|
| Threat protection | 13 Gbps | 26 Gbps | 30 Gbps |
| NGFW | 14 Gbps | 29 Gbps | 31 Gbps |
| IPS | 25 Gbps | 38 Gbps | 42 Gbps |
| SSL inspection (IPS, avg. HTTPS) | 11.5 Gbps | 14 Gbps | 16.7 Gbps |
| IPsec VPN (512 byte) | 55 Gbps | 55 Gbps | 55 Gbps |
| Firewall (1518 byte UDP) | 164 Gbps | 164 Gbps | 164 Gbps |
| Concurrent sessions | 28 M | 28 M | 28 M |
| New sessions per second | 580,000 | 700,000 | 720,000 |
| Ports | 8x 5GE RJ45, 16x GE SFP, 4x 10GE SFP+, 4x 25GE SFP28, HA, MGMT | 8x 5GE RJ45, 16x GE SFP, 4x 10GE SFP+, 4x 25GE SFP28, HA, MGMT | 16x GE RJ45, 8x GE SFP, 4x 10GE SFP+, 4x 25GE SFP28, HA, MGMT |
| Storage | None (401G: 2x 480 GB SSD) | None (701G: 2x 480 GB SSD) | None (900G); 2x 480 GB SSD (901G) |
| VDOMs (default / max) | 10 / 50 | 10 / 50 | 10 / 50 |
| SSL-VPN | No tunnel mode on FortiOS 7.6.3+ | No tunnel mode on FortiOS 7.6.3+ | No tunnel mode on FortiOS 7.6.3+ |
| Appliance list price | $24,696 FG-400G | $35,066 FG-700G | $49,411 FG-901G |
Sources: Fortinet FortiGate 400G Series datasheet (FG-400G-DAT-R06-20261013); Fortinet FortiGate 700G Series datasheet (FG-700G-DAT-R15-20260929); Fortinet FortiGate 900G Series datasheet (FG-900G-DAT-R23-20260929). Values “up to”, enterprise traffic mix, logging enabled. Appliance list price from the Fortinet Americas 2026 MidQ3 Price List, effective 2026-09-07.
What we check before this model goes on a quote, from the engineer who sizes, stages and installs it.
Fortinet's 700G datasheet does not name a predecessor, and we do not publish a guessed mapping. Trade-Up eligibility is per serial number, so we check your current unit's lifecycle dates against the current Trade-Up matrix, then size the 700G on your measured traffic with inspection on. See FortiGate end-of-life replacement.
The 700G has a dedicated 2.5GE HA port and a separate GE management port, so heartbeat and out-of-band management do not use data ports. Fortinet recommends at least two heartbeat links: the HA port plus one data port, cabled directly between the units. The two AC supplies are internal and not hot-swappable (1+1), so feed them from separate PDUs and treat a supply fault as a maintenance-window job while the other unit carries traffic. Each unit needs its own bundle and the current price list has no 700G HA SKU: a pair on 3-year UTP comes to $186,556 on Fortinet's price list, shown for reference.
Four 25G SFP28 cages (they also take 10G SFP+), four 10G SFP+ FortiLink cages for FortiSwitch (reconfigurable as regular ports), sixteen GE SFP and eight 5G/2.5G/GE copper ports, two of them WAN1 and WAN2. Only two 1G SX optics come in the box, so 10G and 25G optics or DAC cables go on the quote as separate line items.
Both members are added in FortiManager as model devices by serial number and staged before they ship. For a migration from an older FortiGate or another vendor, we convert the config, rebuild interface mapping onto the new port layout, and run the old and new units side by side in a cutover window with a rollback path. VDOMs: 10 by default, up to 50.
Size on threat protection (26 Gbps) and SSL inspection (14 Gbps at 13,000 new inspected sessions per second), not the 164 Gbps firewall figure. The datasheet lists 1.6 M concurrent SSL-inspected sessions, fewer than the 400G's 3 M, so a site holding very many long-lived inspected sessions should be sized on that line too. Controller limits are 128 FortiSwitches and 1,024 FortiAPs (512 tunnelled). There is no disk on the 700G, so logs go to FortiAnalyzer or FortiAnalyzer Cloud ($8,316 per year list).
Same ports and performance figures. The 701G adds 2x 480 GB SSD for local logging and disk-based features and lists at $38,254 against $35,066. If logs are centralized in FortiAnalyzer and no disk-based feature is needed, the 700G is the usual pick.
Fortinet references for the notes above: Fortinet best practices: HA heartbeat interfaces; Fortinet Community: HA cluster license requirements; FortiManager administration guide: adding a model device by serial number; Fortinet service contract activation grace period policy; part numbers and list prices from the Fortinet Americas 2026 MidQ3 Price List.
Every line on the quote is an exact Fortinet part number and term, sized to your circuit and the services you run. Your written quote confirms current pricing, tax and shipping.
Payment clears before the distributor order. The unit ships from distribution to your site; freight is billed at actual cost.
Hardware and subscriptions go on your FortiCare account, not ours. Serials and contract dates are on the invoice.
We watch the expiry for every serial we sell and contact you at 120, 90, 60 and 30 days out.
Full terms, special-order rules and what to send for a quote: how buying from us works. Want it run after it ships? We are based in Sacramento: see Sacramento Fortinet MSP.
Fortinet list price is $35,066 for the appliance alone, $54,470 with 1 year of FortiCare Premium and UTP, $93,278 for 3 years and $132,086 for 5 years (price list effective 2026-09-07). The 701G with SSD lists at $38,254. Your quote confirms current pricing, tax and shipping.
Two units, each with its own bundle. At Fortinet list prices (for reference), two FG-700G-BDL-950-36 (3 years UTP) come to $186,556, plus 10G/25G optics, which are quoted separately. The current price list has no shared-license HA SKU for the 700G.
Same chassis, ports and power. The 700G doubles threat protection (26 against 13 Gbps) and raises SSL inspection to 14 Gbps at 13,000 new sessions per second, against 11.5 Gbps and 9,700. It lists at $35,066 against $24,696. Pick on measured traffic with inspection on, not on ports.
You can buy the appliance alone, but every FortiGate we sell carries at least FortiCare ($5,544 per year list for FortiCare Premium on a 700G), because the bare unit gets only 90 days of firmware. A bundle adds FortiGuard UTP or Enterprise Protection, and each member of an HA pair needs its own.
Not in tunnel mode on FortiOS 7.6.3 or later; Fortinet removed it from all models. Browser-based web mode is still available on models that support it. Full-tunnel remote access is IPsec (IKEv2); ZTNA covers access to individual applications.
We buy through Fortinet’s authorized U.S. distribution. Every unit is new, in-channel and registered to your own FortiCare account. Our Fortinet partner ID goes on every quote so you can verify it.
Fortinet, FortiGate, FortiCare, FortiGuard, FortiManager, FortiAnalyzer, FortiOS, FortiSwitch, FortiAP, FortiLink and FortiToken are trademarks or registered trademarks of Fortinet, Inc. Ambio Edge Networks is an independent company and a Fortinet Engage partner; Fortinet does not endorse or sponsor this page.
Automated monitoring and alerting to your Slack, Teams or email and to us, configuration backups, a monthly report, and next-business-day response from a senior engineer (Mon–Fri, 8 AM–5 PM Pacific). Up to 10 managed devices.
No change hours are included. Standard remote changes you ask for bill at $225/hr, 30-minute minimum; larger engineering work is quoted first. Hardware, licensing and migration are quoted separately.
One-time monitoring launch: $1,950 on Essential; other plans pay twice the monthly fee for the first site, up to $3,500, and $1,500 for each additional full site (dashboard, alert routing, baseline, runbook). Only one firewall to look after? Edge Firewall Watch is $199 a month. Faster response and included change hours are on the Secure and Compliance plans.
Start with a fixed-fee network risk assessment, or read how managed network monitoring works.
Request a Quote
For a renewal or replacement, send the serial number and expiry. For a new install, send the circuit speed, user count, switches and access points, and the ship-to address. You get a written quote with exact Fortinet part numbers and terms. Not sure what to buy yet? A Network Risk Assessment audits the firewall, switches and Wi-Fi and gives you a ranked roadmap with budget ranges before you spend on hardware: $3,500 for a single small site; larger networks are priced on the assessment pricing page. See a sample report (PDF).
A senior engineer reads your request and replies within 1 business day.
If anything is missing for an exact quote, we ask before guessing.
You get a written quote with part numbers, terms, shipping and tax lines.
Nothing is ordered until you accept and payment clears.
